MAX ACCESS CONTROL OVERVIEW

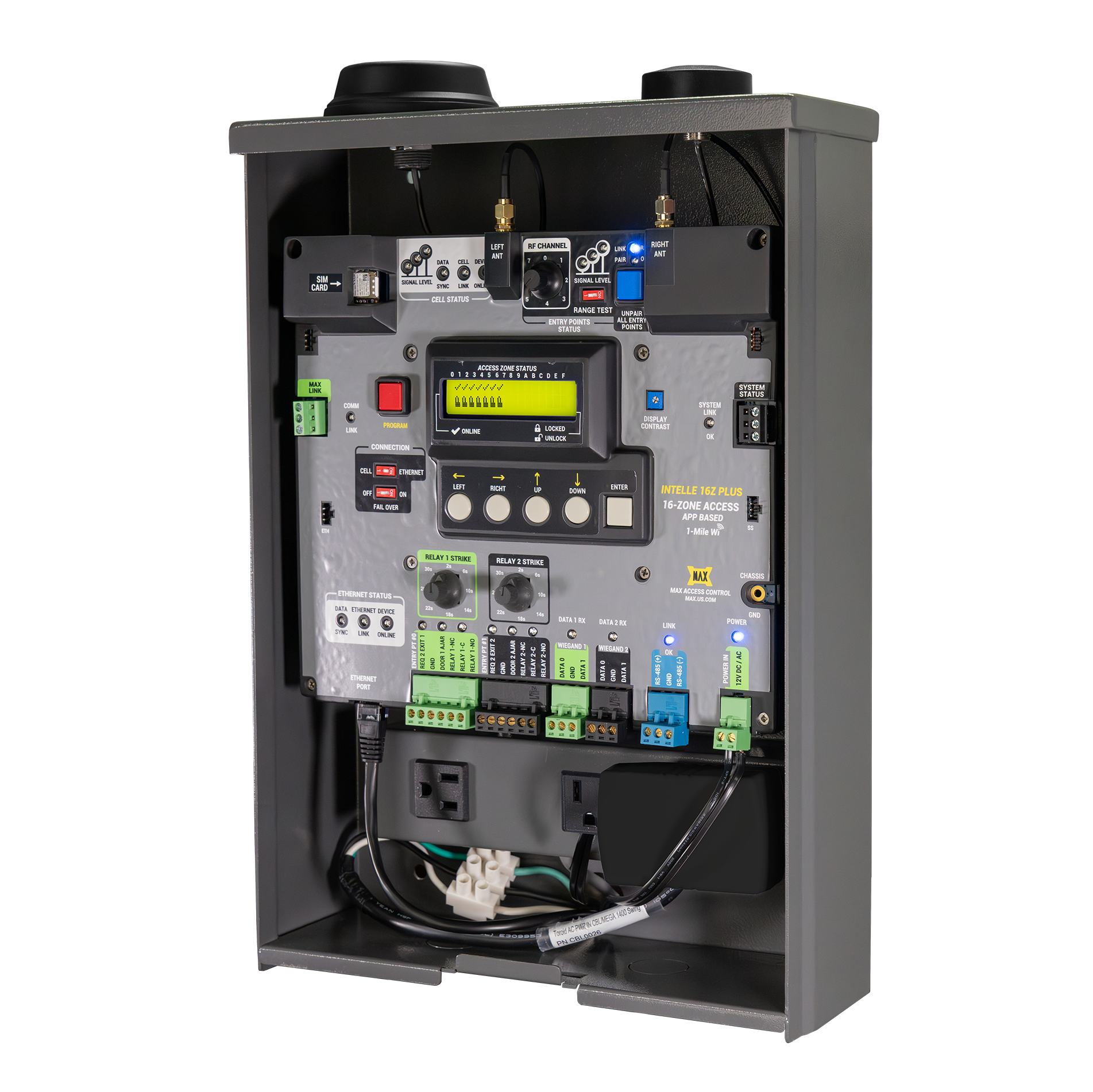

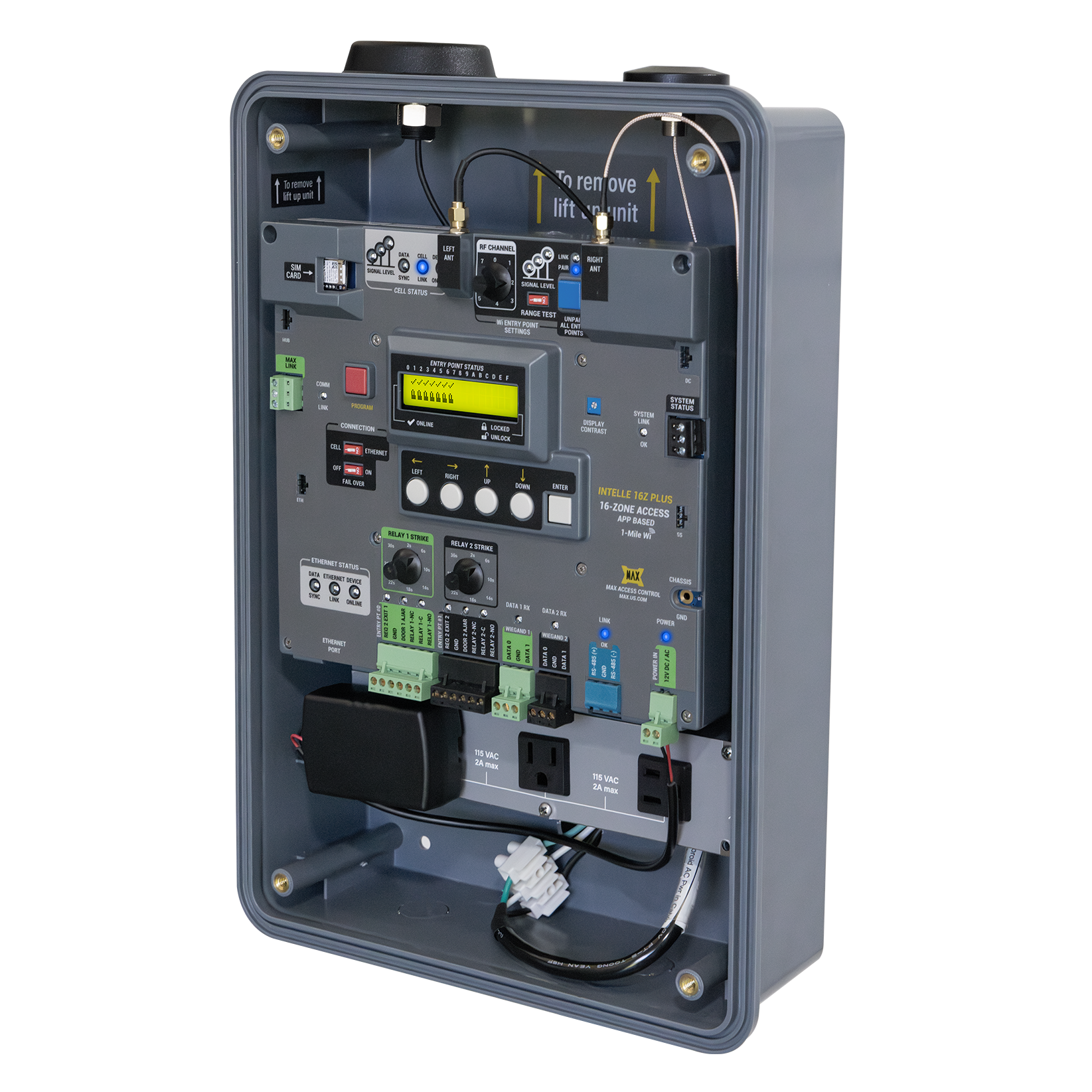

Intelle 16Z Plus
Door Controller 16 Zone

Connectivity Types Supported:

Cellular (Low Monthly Fee) Ethernet (No Monthly Fee)

16 Entry Points: 14 Wireless/Wired 2 Local Entry Points (On board)

  • 16 Zones/Entry Points. 14 Wireless/Wired (2 on board Entry Points)
  • Entry Point Wireless Range (900 MHz) Outdoor (Line of sight): 1 mile. Indoor / Urban: 1000 ft (Use Max Repeater to extend range or avoid signal blocking obstacles)
  • App-Based Control of ALL Entry Points with custom labeled UNLOCK buttons.
  • Web Portal: Web-Based Control to program user credentials with time restrictions for entry points.
  • Connectivity Types Supported: Cellular: Multi carrier SIM card – automatically switches between AT&T, Verizon, or T-Mobile carriers. Ethernet: Supports auto IP (DCHP) and supports Static IP through program menu.
  • Guest Pass with Programmable Access Schedules Short Term: Guest Pass (Hourly). Long Term: Guest Pass (Weekly).
  • Programmable Auto Open Timer & Access Schedule for each Entry Point.
  • Real Time Monitoring of Entry Point Status (Lock/Unlock)
  • Diagnostics for monitoring: Wireless Entry Points. Cloud Connectivity (Cellular/Ethernet)
  • Event Log of all transactions

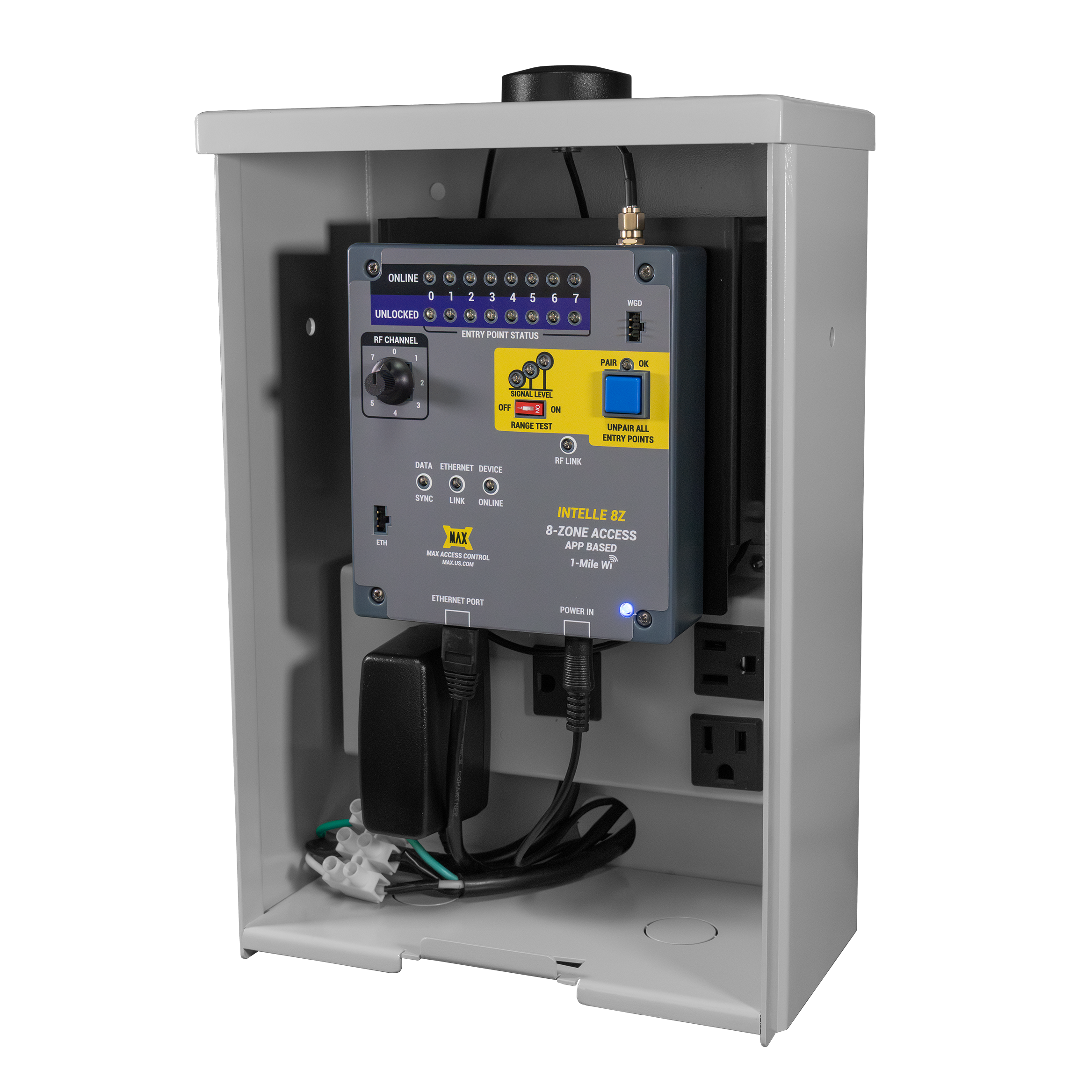

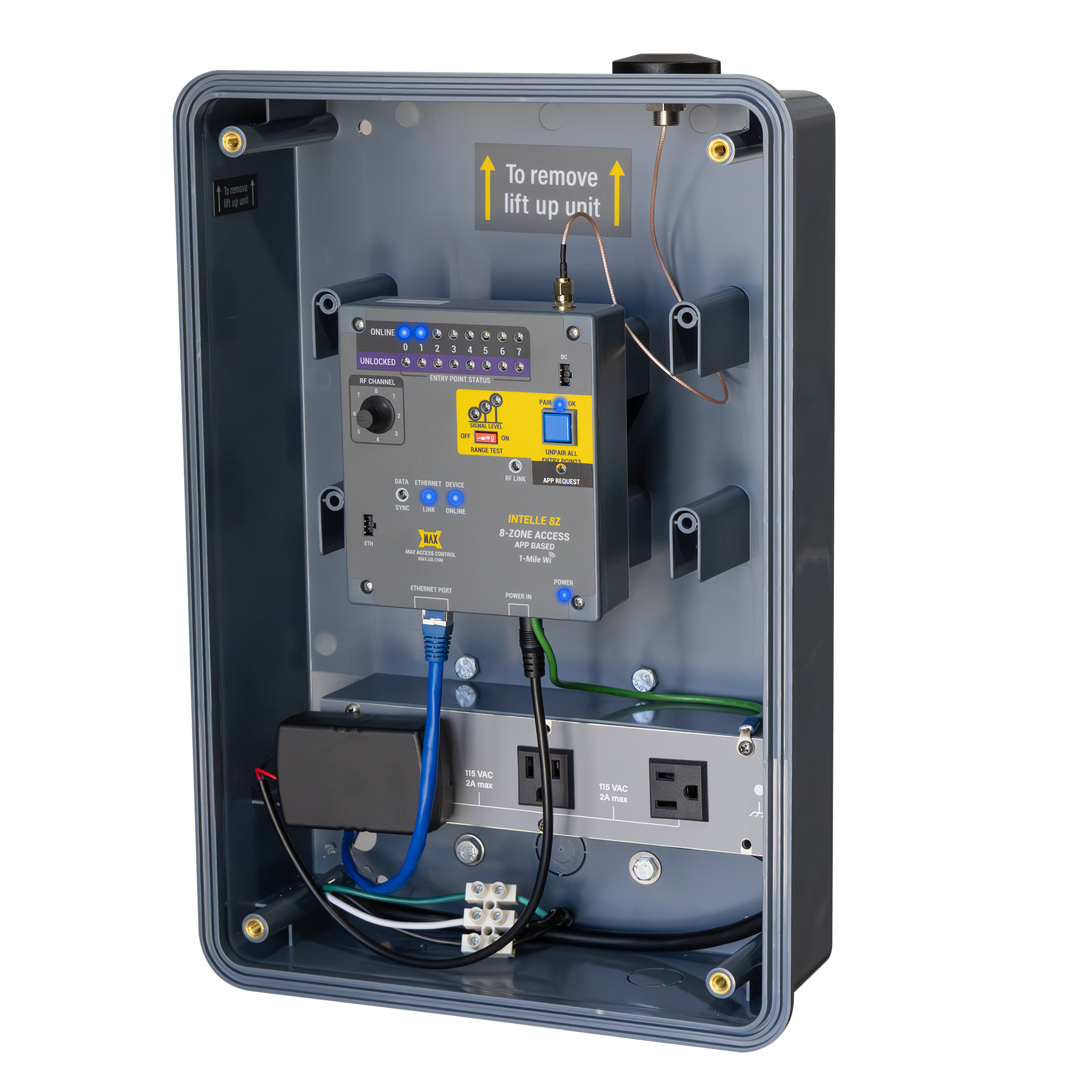

Intelle 8Z
Door Controller 8 Zone

Ethernet Connectivity (No Monthly Fee)

8 Entry Points: All Wireless (No Wired Entry Points)

  • 8 Zones/Entry Points (Wireless Only)
  • Entry Point Wireless Range (900 MHz) Outdoor (Line of sight): 1 mile. Indoor / Urban: 1000 ft (Use Max Repeater to extend range or avoid signal blocking obstacles)
  • App Based Control of ALL Entry Points with custom labeled UNLOCK buttons.
  • Web Portal: Web-Based Control to program user credentials with time restrictions for entry points.
  • Ethernet Connectivity: Supports auto IP (DCHP). (Static IP requires custom configuration via Max)
  • Guest Pass with Programmable Access Schedules Short Term: Guest Pass (Hourly). Long Term: Guest Pass (Weekly).
  • Programmable Auto Open Timer & Access Schedule for each Entry Point.
  • Real Time Monitoring of Entry Point Status (Lock/Unlock)
  • Diagnostics for monitoring: Wireless Entry Points. Cloud Connectivity (Ethernet)
  • Event Log of all transactions

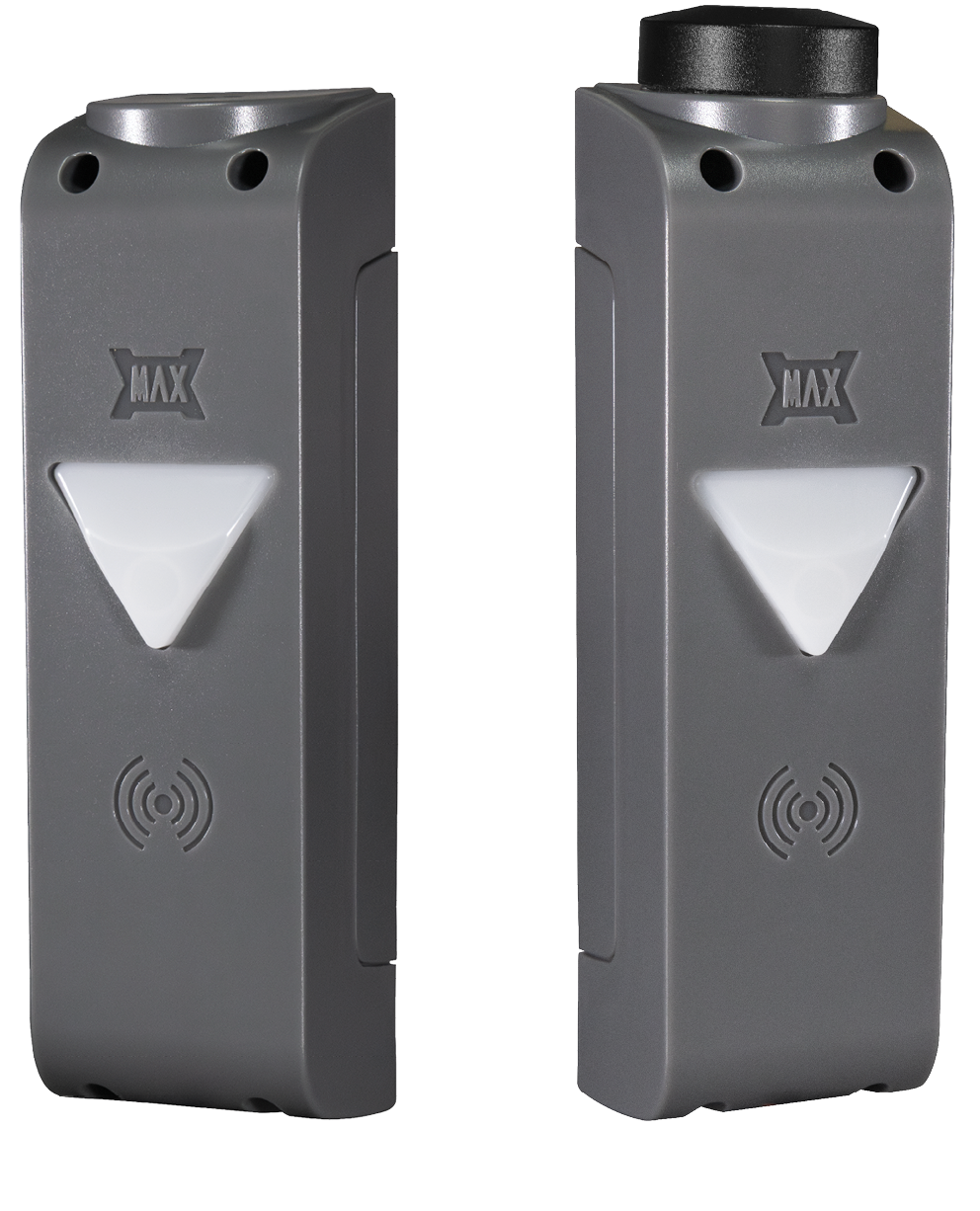

CARD READER (WIRED AND WIRELESS)
Requires Either Max Door Controller
Intelle 16Z Plus or Intelle 8Z

Wirelessly control/operate remote entry point with a Card Reader (and App).

OR

Control/operate local entry point with a wired card reader (and App)

  • BUILT IN HID COMPLIANT CARD READER: Supports 26-Bit HID compliant keyfobs and Cards. Max Keyfobs & Cards available.
  • WIEGAND INPUT PORT: Wiegand port to support 26-bit card readers, radio receivers & RFID transponders.
  • PROGRAMMABLE WIEGAND KEYCODES VIA MAX CLOUD APP/WEB PORTAL: Program Wiegand cards/keyfob, radio transmitters & transponder tags and assign optional time restrictions for specific entry point. Track Wiegand keycode entries in event log (App/Web Portal).
  • RELAY PORT: Control Entry point with dedicated relay. Supports both Solenoid and Maglock (NO, C, NC). Selectable Relay Strike Time.
  • REQUEST TO EXIT (RTE) PORT: Supports exit button request on pedestrian door or gate.
  • DOOR AJAR: Monitors entry door or gate status (with a sensor to detect closed position).
  • PROXIMITY DETECTION FOR ACCESS: App User proximity detection for entry points (Optional Setting).

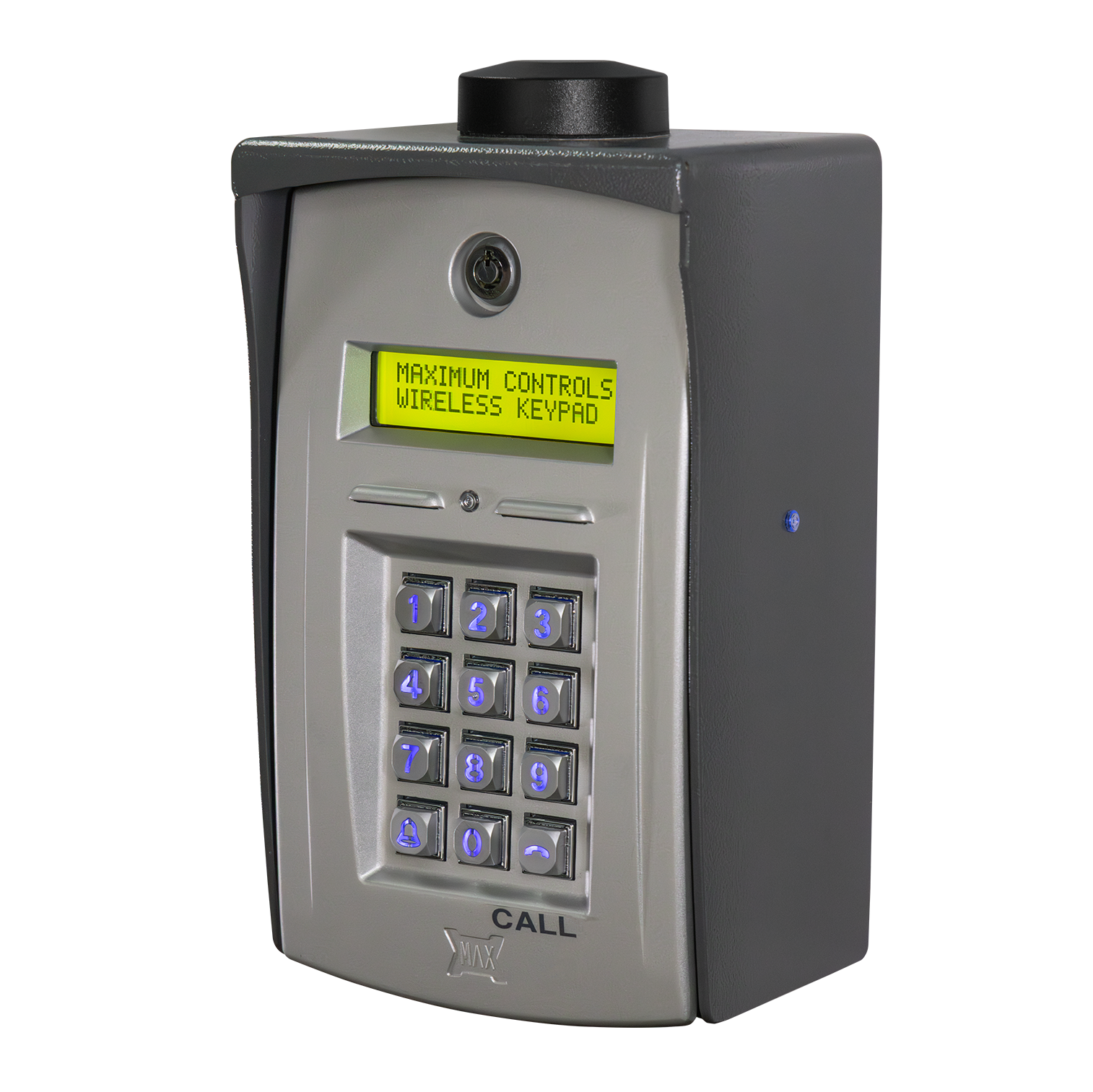

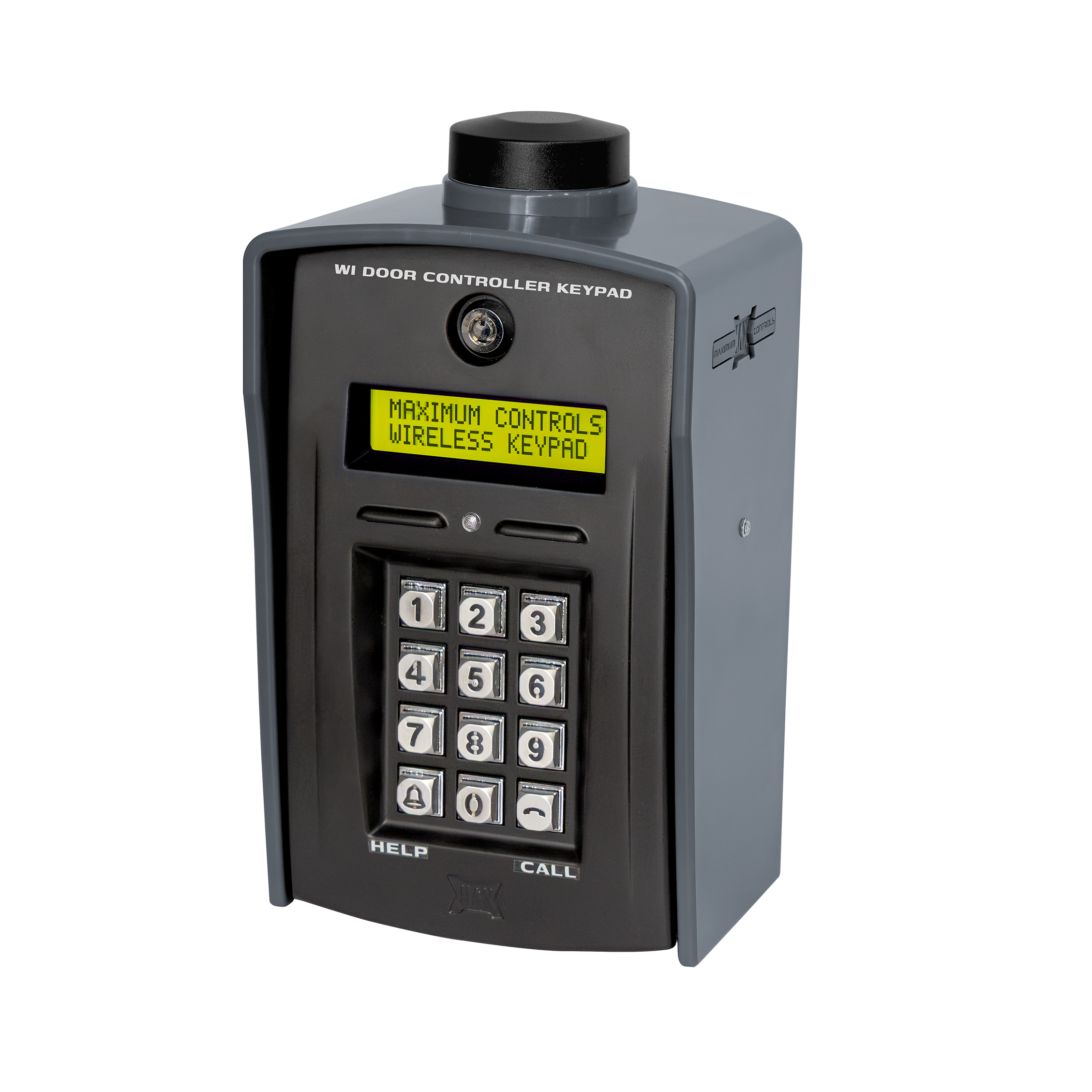

WIRELESS DOOR CONTROLLER KEYPAD
Requires Either Max Door Controller
Intelle 16Z Plus or Intelle 8Z

Wirelessly control/operate a remote entry point with a Keypad (and App).

  • WIEGAND INPUT PORT: Wiegand port to support 26-bit card readers, radio receivers & RFID transponders. Track wiegand device activity in event log (App/Web Portal).
  • PROGRAMMABLE KEYCODES & WIEGAND KEYCODES VIA MAX CLOUD APP/WEB PORTAL: Program keypad keycodes and wiegand cards/keyfob, radio transmitters & transponder tags and assign optional time restrictions for specific entry points. Track keypad keycode and wiegand keycode entries in event log (App/Web Portal).
  • RELAY PORT: Control Entry point with dedicated relay. Supports both Solenoid and Maglock (NO, C, NC). Selectable Relay Strike Time.
  • REQUEST TO EXIT (RTE) PORT: Supports exit button request on pedestrian door or gate.
  • PROGRAMMABLE GREETING MESSAGE: Customize greeting message on keypad display on app/Web Portal. All Keypad Entry Points share same Greeting Message.
  • PROGRAMMABLE CALL BUTTON MESSAGE: Program on the App a display message for the CALL button with a specific instruction for visitors, For example:When a visitor pushes the CALL button, the display message will instruct the visitor to call a specific phone number (i.e. facility manager or home owner) using their personal cell phone. EX: CALL button message: “CALL (949) 000-0000 on your phone”. All Keypad Entry Points share the same Call Button Message.

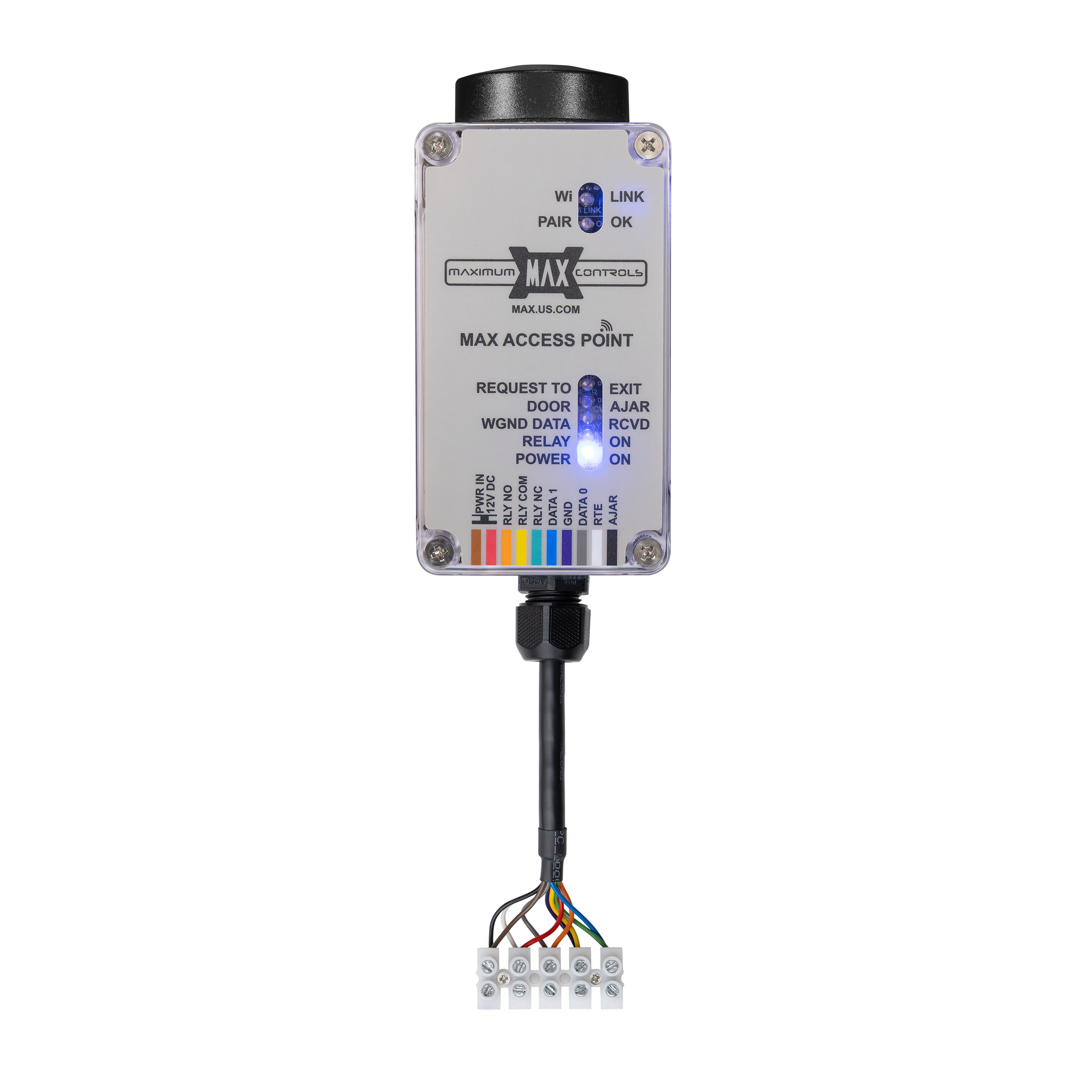

WIRELESS ACCESS POINT
Requires Either Max Door Controller
Intelle 16Z Plus or Intelle 8Z

Wirelessly control/operate a remote entry point with Wiegand Device (and App).

  • WIEGAND INPUT PORT: Wiegand port to support 26-bit card readers, radio receivers & RFID transponders.
  • PROGRAMMABLE WIEGAND KEYCODES VIA MAX CLOUD APP/WEB PORTAL: Program Wiegand cards/keyfob, radio transmitters & transponder tags and assign optional time restrictions for specific entry point (App/Web Portal). Track wiegand device activity in event log (App/Web Portal).
  • RELAY PORT: Control Entry point with dedicated relay. Supports both Solenoid and Maglock (NO, C, NC). Selectable Relay Strike Time.
  • REQUEST TO EXIT (RTE) PORT: Supports exit button request on pedestrian door or gate.
  • DOOR AJAR: Monitors entry door or gate status (with a sensor to detect closed position).

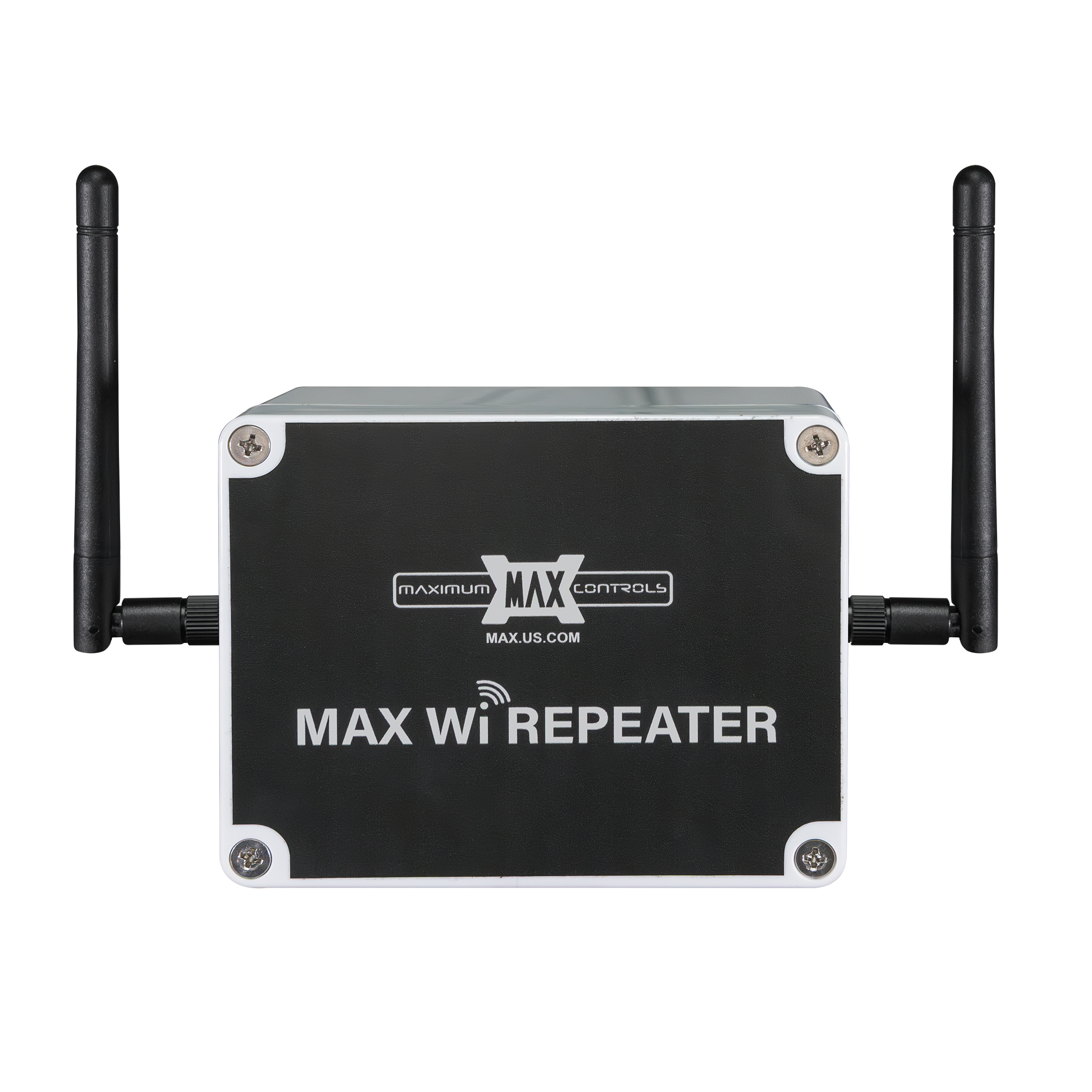

WIRELESS REPEATER
Requires Either Max Door Controller (Intelle 16Z Plus or Intelle 8Z), and Max Wireless Entry Point (Wireless Card Reader, Wireless Door Controller Keypad, or Wireless Access Point)

EXTENDED RANGE: Outdoor- 2 Mile (line-of-sight). Indoor- 2000 ft (Urban)

  • EXTENDS WIRELESS RANGE: Bridges the gap caused by signal-blocking obstacles—such as trees, metal structures, and/or concrete walls between any entry point and door controller.
    .

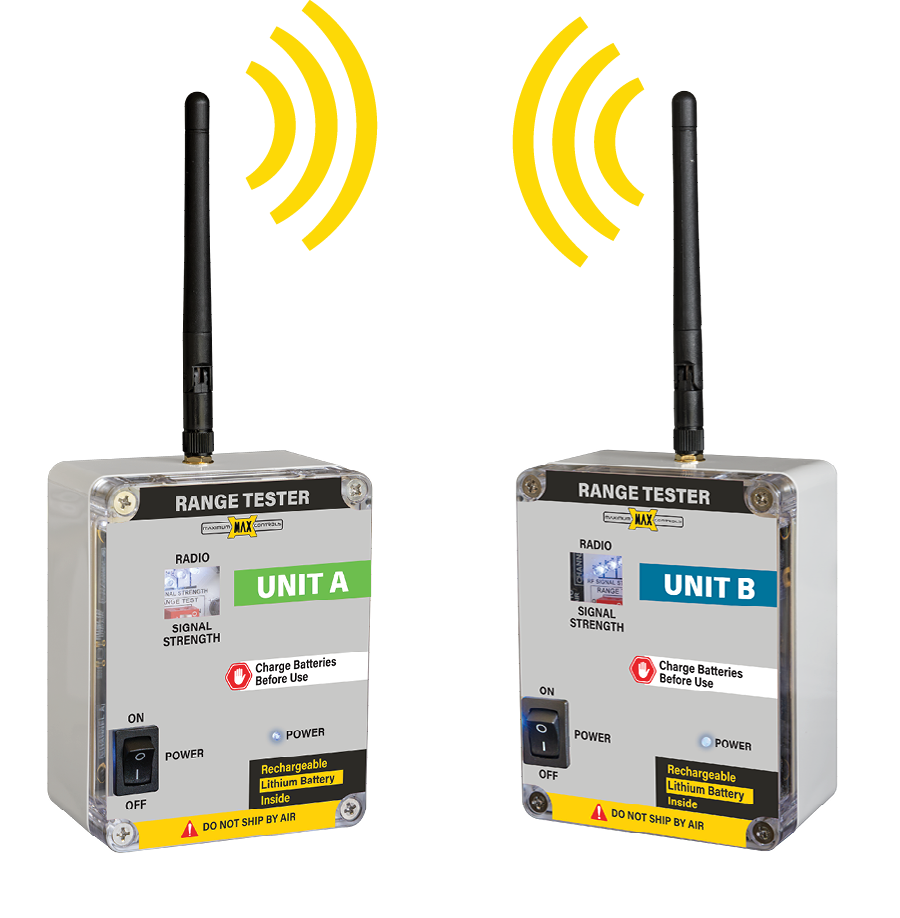

MAX WIRELESS RANGE TESTER KIT
Use this Range Tester Kit to determine wireless range for each Entry Point in an application

Use this Range Tester Kit to determine wireless range for each Entry Point in an application

This unit includes rechargeable batteries. Must charge batteries before testing range (Charger Included).

Note: Low batteries can give inaccurate range readings.
